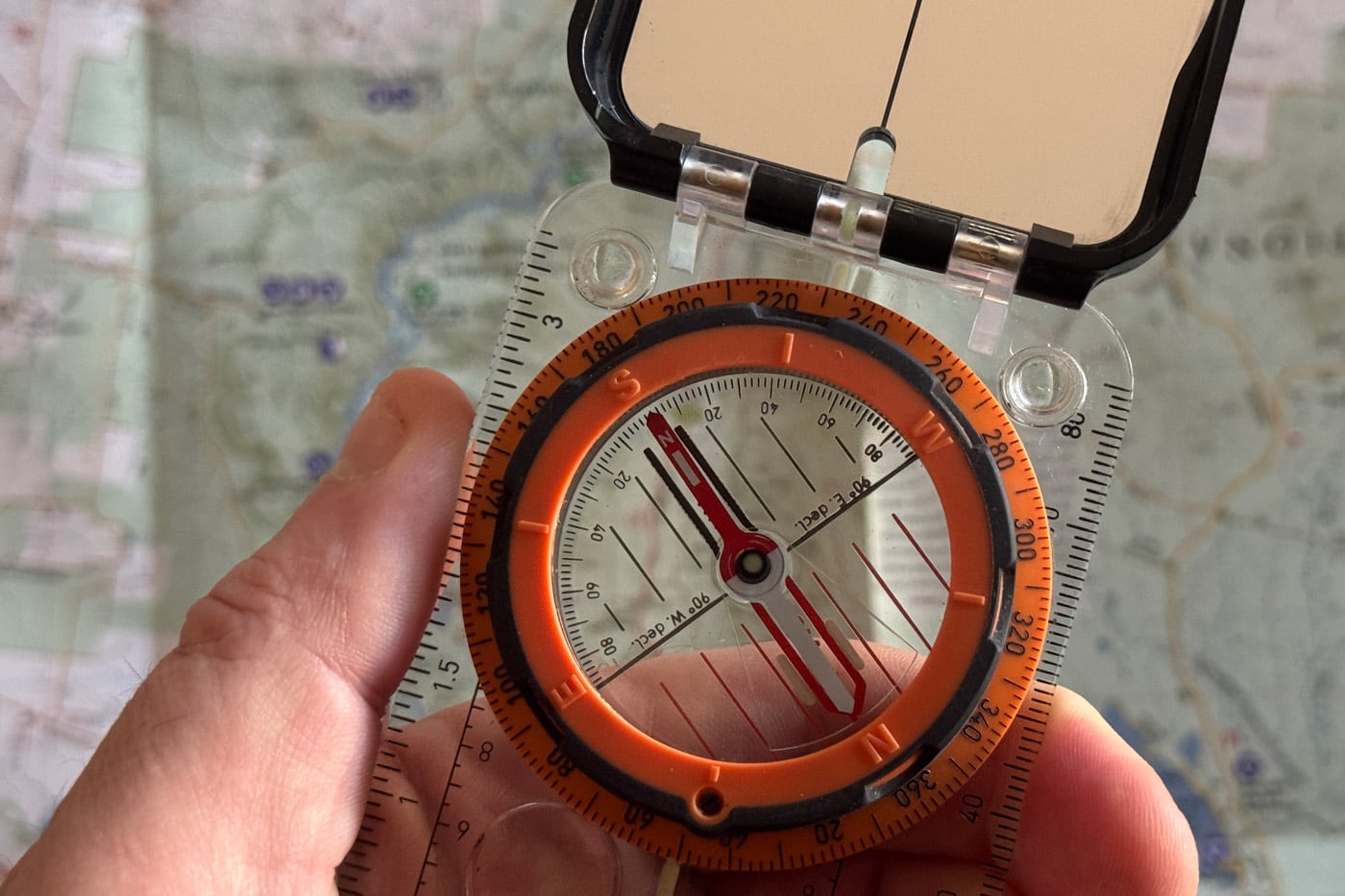

Anatomy of a hiking compass
A hiking compass is a simple tool, but only if you understand what each part does and how the pieces work together. Many navigation mistakes come from not knowing which component you are using, or from using the right part in the wrong way.
This guide explains the main parts of a modern baseplate compass, how they function, and why they matter when navigating with a topographic map. In Australian conditions, where tracks can be faint, terrain repetitive, and signage unreliable, knowing your compass properly builds confidence and provides an important safety margin.

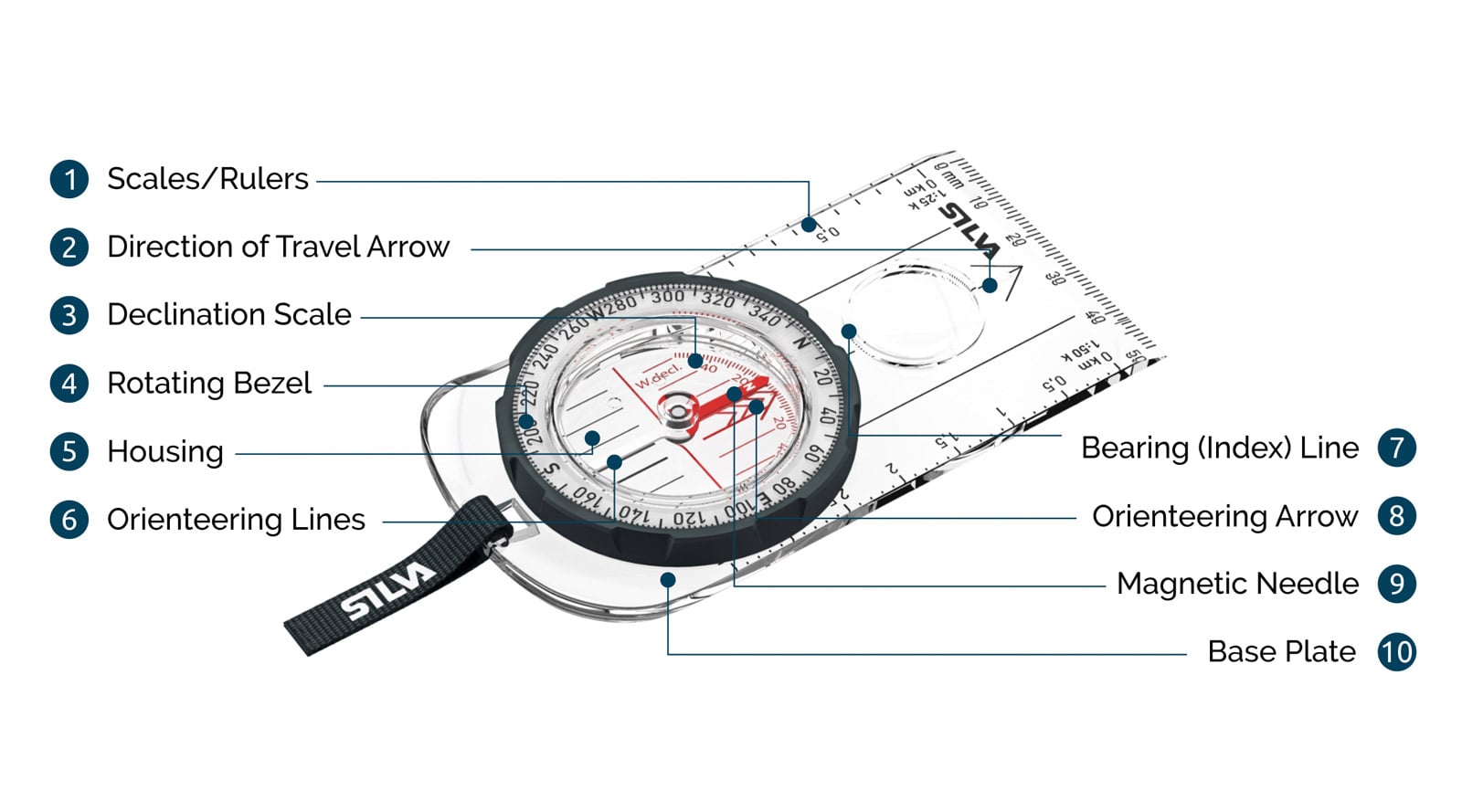

The main parts of a modern hiking compass
Magnetic needle
The magnetic needle is the heart of the compass. It is magnetised and aligns itself with the Earth’s magnetic field. In Australia, the red end of the needle points to magnetic north.
Key points:
- The needle must be free to move and settle quickly
- It always points to magnetic north, not true north
- It is affected by nearby metal and electronics
Common mistakes include tilting the compass so the needle drags, or taking bearings too close to phones, vehicles, or trekking poles.
Compass housing and capsule
The housing contains the liquid-filled capsule and the magnetic needle. The liquid dampens the needle’s movement so it settles quickly and is easier to read.
A small air bubble inside the capsule is normal and allows for temperature-related expansion. Large bubbles, however, can interfere with needle movement and are a sign of damage or age.
Rotating bezel (azimuth ring)
The bezel is the rotating outer ring marked from 0 to 360 degrees. Turning the bezel rotates the internal housing and orienting arrow.
The bezel is used to:
- Set a bearing
- Hold that bearing while working with a map
- Follow the bearing accurately in the field
Always check that the bezel has not shifted before following a bearing, especially if the compass has been bumped or dropped.
Bearing or index line
The bearing or index line is a fixed line at the top of the housing. This is the reference line where you read the bearing value from the bezel.
When you “read the bearing,” this is the line you use. Reading from anywhere else will give an incorrect direction.
Orienting arrow
The orienting arrow sits inside the housing and rotates when you turn the bezel. It is shaped to fit the magnetised end of the needle.
When following a bearing, the compass is correctly oriented when the red end of the needle sits inside the orienting arrow. This relationship between needle and arrow is critical. If they are not aligned, the bearing is wrong.
Orienting lines
Orienting lines are parallel lines printed inside the housing and sometimes on the baseplate. They run in the same direction as the orienting arrow.
These lines are used primarily when working with a map. When aligned with the north–south grid lines on a topographic map, they help you orient the map correctly and reduce rotational errors.
They are particularly important in Australian terrain where distant landmarks may be limited or visibility poor.
Declination scale
Magnetic declination is the difference between magnetic north and true north. In Australia, this difference can be significant and varies depending on location.
Many modern compasses include a declination scale or adjustment system. When set correctly, this allows you to work directly with map bearings without needing to apply mental corrections each time.
Good practice:
- Check the declination printed on your map
- Set your compass if it allows adjustment
- Apply corrections consistently if it does not
Ignoring declination is one of the most common causes of large navigation errors.
Direction-of-travel arrow
The direction-of-travel arrow is printed on the baseplate and points forward. When taking or following a bearing, this arrow must always point in the direction you intend to move.
When walking on a bearing, you follow the direction-of-travel arrow, not the magnetic needle.
Scales and rulers
The edges of the baseplate usually include rulers for common map scales. In Australia, scales of 1:25,000 and 1:50,000 are the most useful.
These allow you to measure distances directly on your map using the correct scale, helping with time estimates, planning, and decision making.
Baseplate
The baseplate is the flat, transparent body of the compass. It provides straight edges for aligning with map features and allows you to see map detail underneath while working.
The baseplate turns the compass into a map tool, not just a direction finder. Keeping it flat and aligned correctly is essential for accurate bearings.
How the parts work together
A compass only works properly when all components are used together, in the correct order.
In simple terms:
- The baseplate aligns the compass with the map
- The orienting lines align the compass with map north
- The bezel stores the bearing
- The index line is used to read the bearing
- The orienting arrow captures the needle
- The needle confirms magnetic north
- Declination ensures map and ground directions match
If one part is misunderstood or skipped, the entire system becomes unreliable.
Additional compass features
Some compasses include extra features that can be useful, depending on how and where you hike.
Common examples include:
- A magnifier for reading fine map detail
- A mirror and sighting system for more precise bearings and emergency signalling
- Global or dual-hemisphere needles, which are important for travellers using compasses outside their original magnetic zone
- Inclinometers for measuring slope angles
Additional features add capability but also complexity. They are most valuable when you understand how and when to use them. For most hikers, a simple, well-understood baseplate compass is more effective than a feature-heavy model used poorly.
Learn the parts, then practise
Knowing the names and purpose of each part of your compass makes learning navigation much easier. Regular practice builds familiarity and confidence, so using your compass becomes second nature rather than a stressful task when conditions deteriorate.
Many navigation problems on the trail come down to poor understanding of basic tools rather than difficult terrain. A compass and map work together as a system. When you understand both, the information you need to navigate safely is already in your hands.
Final thoughts
Understanding the parts of your compass is not about memorising terminology. It is about knowing what each component does, when it matters, and how the system works as a whole.
In Australian hiking conditions, where navigation errors can escalate quickly, a properly understood compass provides confidence, clarity, and a strong safety margin. Practise using your compass deliberately in easy terrain before relying on it in more complex environments.
Knowing your compass is a foundational navigation skill. Everything else builds on it.
